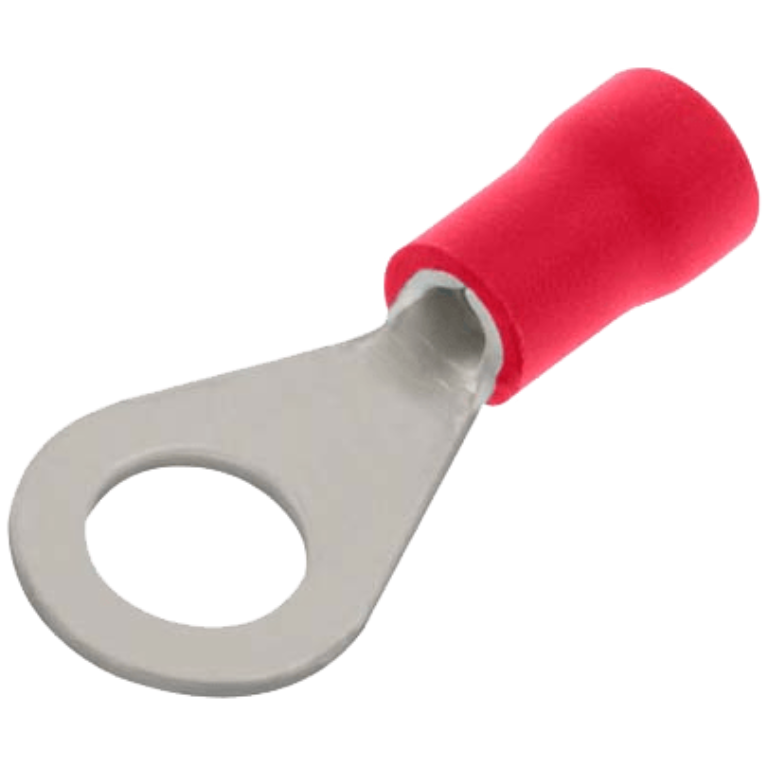

Pre Ins Terminal Red Ring 4mm

Part Number: CRIMPRR4 Category:

ONLY £

3 in stock (can be backordered)

Description

Sold by Unicrimp, this is the QRR4 Terminal Ring Red , stud size 4mm , pack=100. Each high-conductivity copper terminal is electroplated with tin to ensure resistance to corrosion and has an easy entry opening to assist with quick and efficient cable insertion

Additional information

Product

Terminal

Type

Ring Tongue

Qualifier
Current Rating (max)

19 A

Voltage (max)

600 V

Insulated

Terminal Material

Copper

Insulation Colour

Red

Cable Size Range

1.5 mm2

Hole/Stud Size

4 mm

Insulation Material

PVC

Colour

Finish

Diameter (mm)

4.3 mm

Length

19.4 mm

Width

Working Temperature

-10|75 Degrees C

Standards

Leeming Bar 4
Thirsk 0
Catalogue Page
Technical Data Sheet
