Utp Cat6 PVC Grey (Pure Copper)
ONLY £
Available on back-order
Description

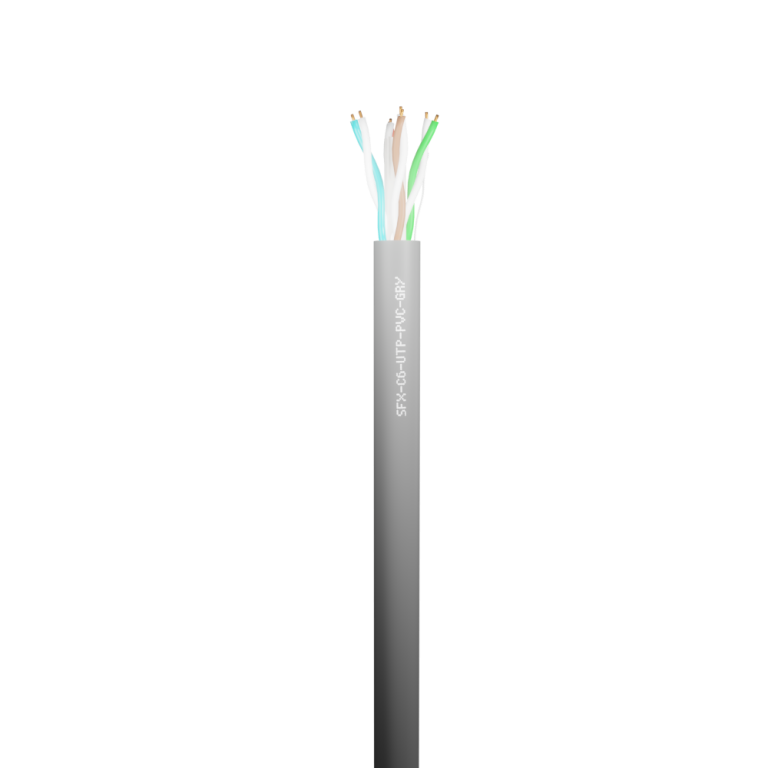

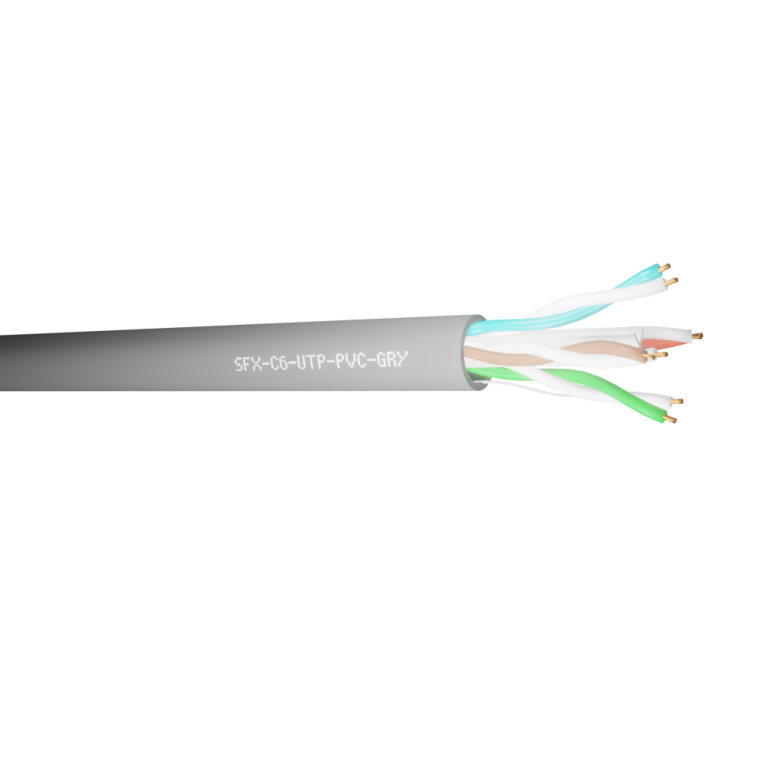

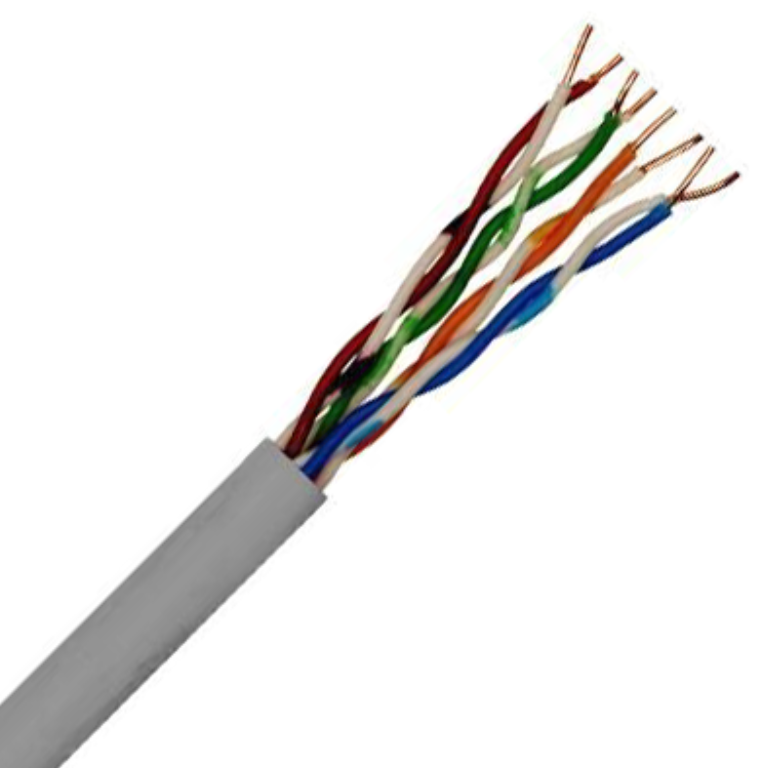

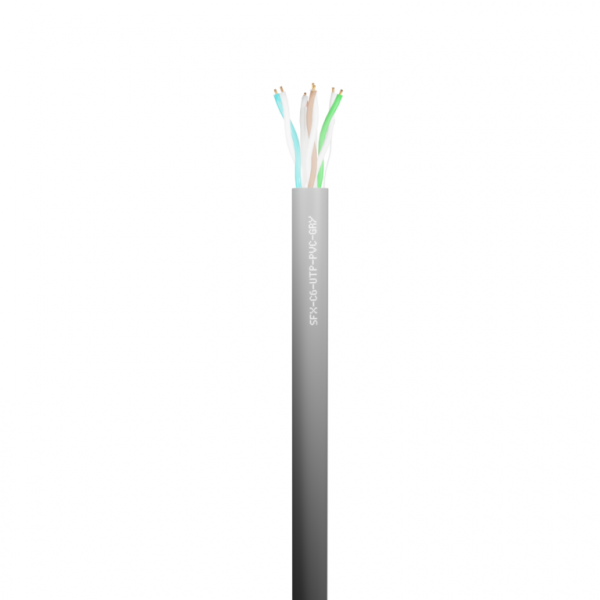

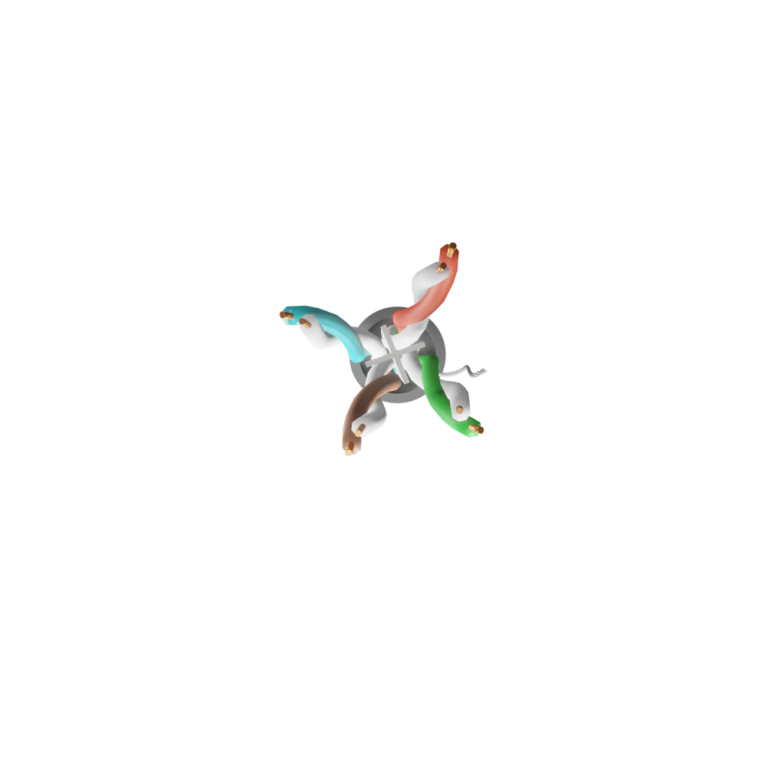

Sold by Securiflex, this is the SFX/C6-UTP-PVC-GRY-305 Utp Cat6 PVC Grey (Pure Copper). It’s a high performance network cable that consists of 4 twisted pairs.
Additional information
| Product | Cable |
|---|---|
| Type | Cat6 |
| Qualifier | |
| AWG | 24 |
| Core Identification | Coloured |
| Earth Core | N |
| Conductor Material | Copper |
| Conductor Construction | Bare |
| Insulation Type | HDPE |
| Armoured | N |
| Fire Resistant | N |
| Note | Internal Data transmission up to 1Gb/s (10Gb/s up to 37m). |
| Resistance/Impedance | 95 Ohms |
| Drain Wire | N |

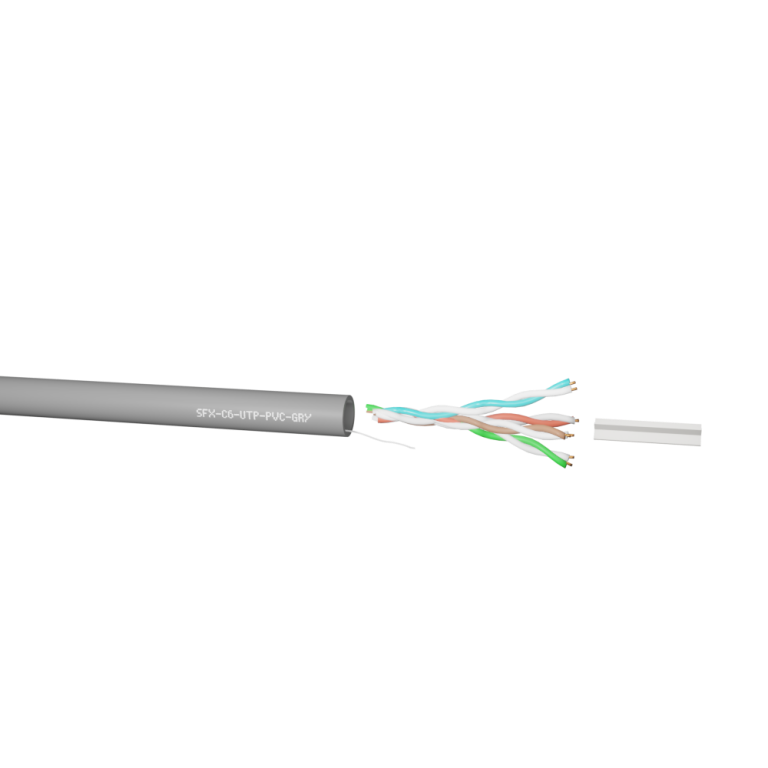

| Fillers | Cross member |
| Number of Pairs | 4 |
| Magnetic armour | N |
| Core Colours | Blue/White/Blue;Orange/White/Orange;Green/White/Green;Brown/White/Brown |
| Outer Sheath Material | PVC |
| Outer Sheath Colour | Grey RAL 7004 |
| Drum Length | 305 Metres |
| Cable Diameter | 6.10 mm |
| Stranding Size | 0.53 mm |
| Minimum Temperature Rating | -20 Degrees C |
| Maximum Temperature Rating | 80 Degrees C |
| CE Approved | |
| Conforming Standard | ISO/IEC 11801 ANSI/TIA 568-C.2 CE2014/30/EU LVD 2014/35/EU RoHS2 2011/65/EU |
| Flame Propagation Standard | Eca |
| Unit Weight |
