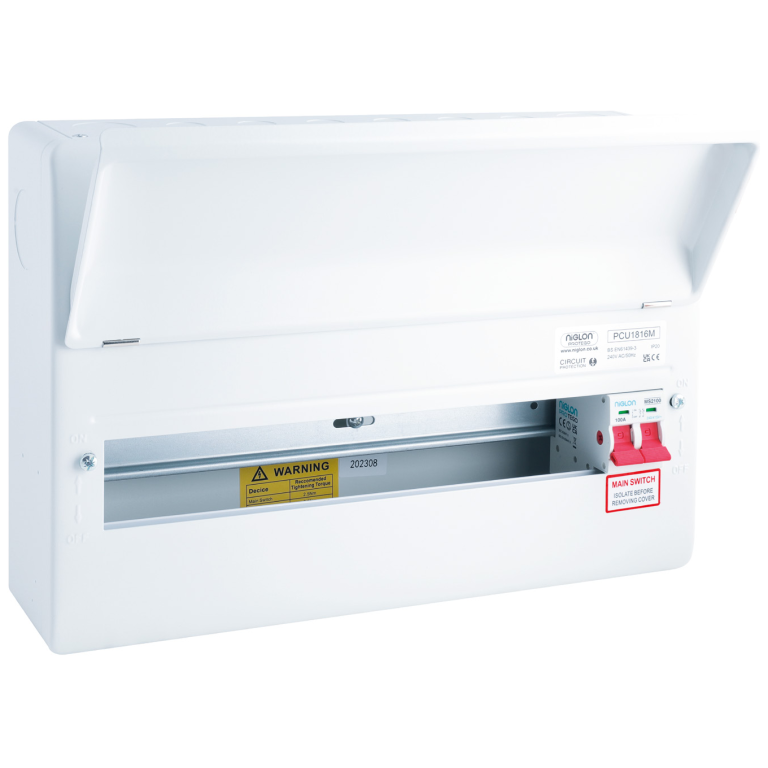

Niglon PCU1816M Consumer Unit 18 Mod

Buy Niglon Protego Consumer Units Online at Upex Electrical

The PCU1816M has 16 useable ways and DP 100A isolator.

The Niglon Protego range of consumer units is designed for electrical contractors and installers who need a reliable, fully compliant distribution board for domestic and light commercial installations. Manufactured by Niglon, the Protego range combines a robust steel enclosure with installer friendly features, making it a popular choice for new builds, rewires, and consumer unit replacements across the UK.
Upex Electrical Distributors stocks the full Niglon Protego range across at Thirsk branch but its available for quick delivery from our Newton Aycliffe and Leeming Bar branches, with fast trade counter collection and next day delivery available on most lines.
What Is the Niglon Protego Consumer Unit Range?
The Protego range covers main switch consumer units and RCBO consumer units, available from compact 2 way boards through to high capacity 32 way dual row enclosures. This gives installers a single trusted range to specify for anything from a small flat rewire to a large domestic property with multiple circuits.
Several models in the range are also available as SPD consumer unit kits, pairing a Protego main switch board with a matched Niglon Type 2 surge protection device fitted directly to the busbar, removing the need for a separate MCB and simplifying compliance with the surge protection requirements of BS 7671.
Key Technical Features
• Powder coated steel enclosure finished in RAL 9010 with rounded edges for a clean, modern appearance
• 100A double pole twin screw main switch on standard models, with 125A options on larger dual row boards
• Rated operational voltage of 230V AC and rated frequency of 50Hz
• IP20 ingress protection rating and IK05 impact resistance rating
• Reinforced 1.2mm curved lid for added durability on site
• Built-in spirit level for accurate, professional installation
• Raised DIN rails for improved cable management
• Square rear knockouts and multiple cable entry points for flexible routing
• Large terminal screws for secure, long-lasting cable retention
• Twin screw main terminal capacity suitable for tails up to 35mm² on standard models, rising to 50mm² on the higher capacity 32 way board
• Right hand incomer configuration as standard
• Type 2 SPD option that fits directly to the busbar with no separate MCB required, on selected SPD kit models
• Supplied with an accessory kit of 2 din rail blanks, 32mm tails gland and heavy duty rubber grommet strip
Standards and Compliance
Niglon Protego consumer units are manufactured to meet BS 7671:2018, BS EN 61439-3, and EN60947-3, with main switch components independently tested and Semko certified. Every unit also carries CE and UKCA marking, giving installers confidence that the board meets current UK wiring regulations for domestic and light commercial consumer units.
Why Choose Niglon Protego from Upex Electrical
As an independent electrical wholesaler trading since 1987, Upex Electrical Distributors understands what installers need from a consumer unit: reliable stock availability, clear technical specification, and a product that is straightforward to fit on site. The Niglon Protego range delivers on all three, and our team across Newton Aycliffe, Leeming Bar, and Thirsk can help you choose the right way count, main switch rating, and SPD configuration for your job.
Browse the full Niglon Protego consumer unit range online, or contact your local Upex depot to check stock and place an order.
